Ningbo Futai Safety Edge Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm epdm kev ruaj ntseg ntug rau zawv zawg rooj vag nyob rau hauv Tuam Tshoj, tshwj xeeb hauv kev muab cov kev pabcuam zoo. Yog tias koj yuav mus yuav ntau CE pom zoo epdm kev nyab xeeb ntug rau zawv zawg rooj vag, txais tos kom tau txais cov qauv dawb thiab cov ntaub ntawv luv nqi los ntawm peb lub hoobkas.
FUTAI EPDM kev nyab xeeb ntug R206 feem ntau yog siv rau qhov rooj zawv zawg thiab qhov rooj zawv zawg. Nws ua haujlwm nrog kev nyab xeeb sensor sawb. Qhov no rhiab strip hloov yog tus nqi siab thiab ruaj khov, peb muab kev pabcuam 20 xyoo lossis 100,000 zaug siv.

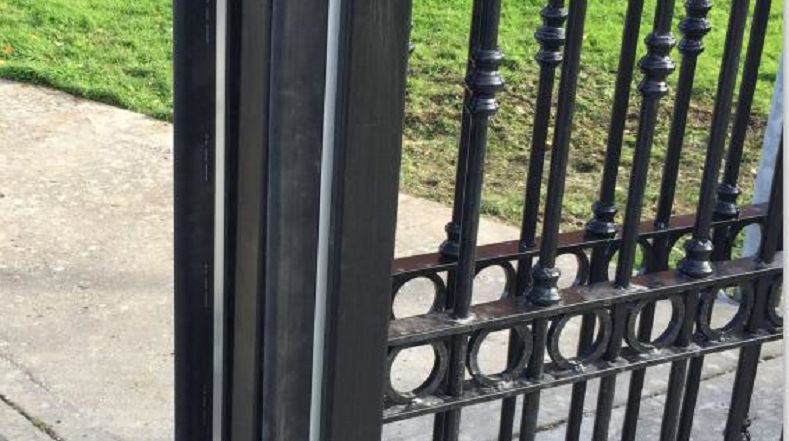

Kev nyab xeeb roj hmab R206 yog daim ntawv thov dav, feem ntau yog siv rau ntawm cov qhov rooj thiab rooj vag, zawv zawg qhov rooj, zawv zawg rooj vag, qhov rooj tig, qhov rooj nrawm, rooj vag, platform, AGV, thiab lwm yam.

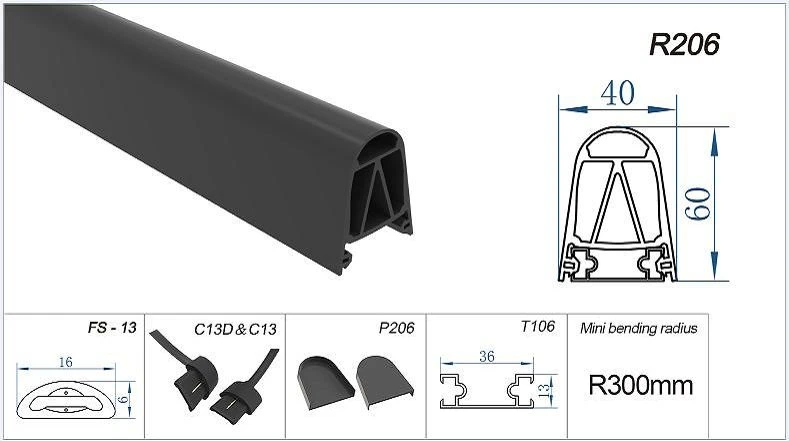

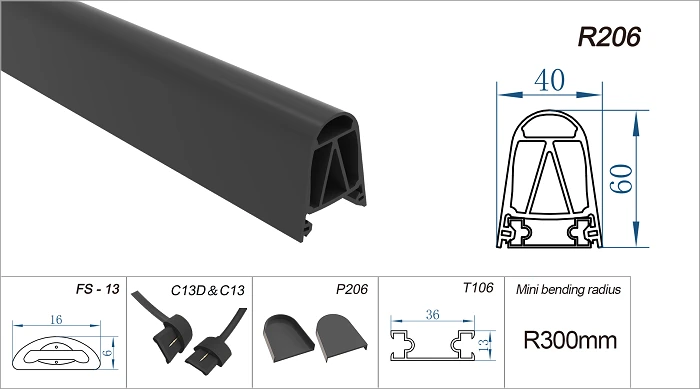

Technical Data
|
Khoom npe |
Kev nyab xeeb ntug |
|
Yam khoom No. |
TSW-206 |
|
Hom |
Sib cais |
|
Sensor ntev |
Max.3000mm, Min.200mm |

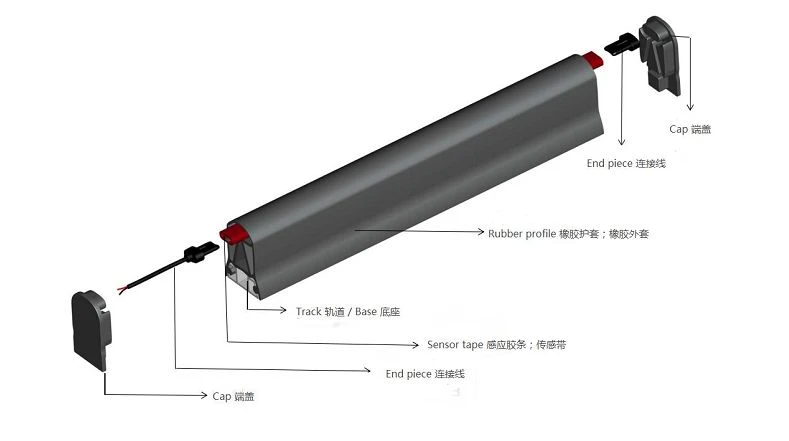

Cheebtsam
|
a. Rubber sab nrauv profile R206 |
EPDM khoom, xim dub |
|
b. Sab hauv sensor daim kab xev FS-13 |
Cov khoom siv silicone, xim dub |
|
c. Xaus daim C13 |
Nrog tus qauv ntev 200mm cable; 24AWG |
|
d. Pem taub hau P206 |
EPDM khoom |
|
e. Rail T106 |
Aluminium, W 36mm * H 13mm, Max ntev 3M |
|
1. Loj |
W 40mm * H 60mm |
|
2. chav kawm tiv thaiv |
IP65, IP67 muaj |
|
3.Tsib zog |
＜25N (ntawm chav kub 20 degree) |
|
4. Launch nrug |
6.0-8.0 hli |
|
5.Mini khoov vojvoog |
R300 hli |
|
6. Thaj chaw tuag |
± 30mm ntawm txhua qhov kawg |
|
7.Wire- tawm kev taw qhia |
Ncaj ncaj default |
|
8.Qhov kub thiab txias |
-40℃+80 degree |
|
9.Base nyhav |
±1020g/m |
|
10.Package |
Carton; 3m / pc |
|
11. Pom zoo |
CE, ROHS, ISO9001: 2015, TUV |
|
12. Kev Cai Tsim |
OEM & ODM |

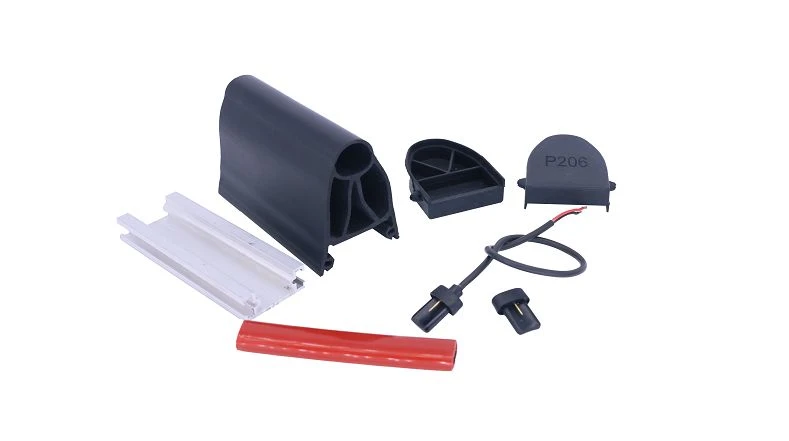

Khoom siv
Futai Safety Edge FS-206 Cov khoom siv
|
Code |
Khoom npe |
Code |
Saib |
Dimension |
UNIT |
Lus ceeb toom |
|
1 |
Roj hmab profile |
R206 |
|
|
meter |
15m / yob |
|
2 |
Sensor daim kab xev |
FS-3 |
|
16mm * 7.5 hli |
meter |
100m / yob |
|
3 |
Aluminium Track |
T106 |
|
|
meter |
1-2 m / pcs |
|
4 |
Plug |
P-206 |
|
/ |
khub |
|
|
5 |
Xaus kab |
C05 |
|
0.25m kab |
teeb |
nrog los yog tsis muaj resistor |
Packing & Shipping
- Los ntawm Express
- Tsheb thauj mus los
- Kev thauj hiav txwv
Vim li cas thiaj xaiv peb?
1. EPDM kev nyab xeeb ntug kev koom ua ke.
2. Txiav.
3. Drilling.
4. Qauv muaj (1 meter siab tshaj tus qauv dawb)
5. Kev cai-ua.
5. Xaus-to-end.
FAQ
Q: Cov nqe lus ntawm kev lag luam yog dab tsi?
A: FOB, FCA, DAP, CIF, CPT, EXW ...
Q: MOQ thiab lub sijhawm ntau lawm?
A: MOQ 100 meters lossis 100 pcs, 10-15 hnub ua haujlwm.
Q: Koj puas muaj cov khoom sib tw?
A: Yog lawm, peb muab End- rau- qhov kawg kev pabcuam, thiab lwm yam khoom siv, xws li Alum track, kawg cable thiab lub hau kawg.
Q: Qhov chaw nres nkoj xa khoom yog dab tsi?
A: Ningbo lossis Shanghai
Q: Lub sijhawm ua haujlwm rau kev txiav txim yog dab tsi?
A: EPDM kev nyab xeeb ntug Standard qauv nkoj hauv 10-15 hnub; customized units xav tau 20-30 hnub.
Q: Koj puas muab kev pabcuam tomqab- muag khoom txawv teb chaws?
A: Yog lawm, peb tau koom tes nrog cov chaw pabcuam hauv cheeb tsam tseem ceeb.
Q: Kuv puas tuaj yeem thov lub thoob qhov loj me?
A: Yog lawm! Peb muab cov ntawv txuas ntxiv.
Q: Cov ntaub ntawv dab tsi koj muab rau kev xa tawm?
A: Tag nrho cov khoom xa tawm (Kev Lag Luam Invoice, Cov Ntawv Teev Npe, Daim Ntawv Sau Npe, COC, thiab lwm yam).
Q: Kuv yuav tso qhov kev txiav txim li cas?
A: Hu rau peb ntawm email / xov tooj rau kev tsocai, tom qab ntawv lees paub nrog PO.
